Our Products

Traction:>800KGS
Traction Speed: 1M-1.6M/MIN

Opening Size of Conveyor Mouth:5mm-45mm
Belt Size :L1000m, Width 60mm5mm-45mm
Gasoline Engine Tank Capacity about 4 Liters (90/92 gasoline)
Total Power:8.5KW
Application:288 cores /7*2.6/4*35m2(Optical Cable/Steel Stranded Wire/Power Cable)

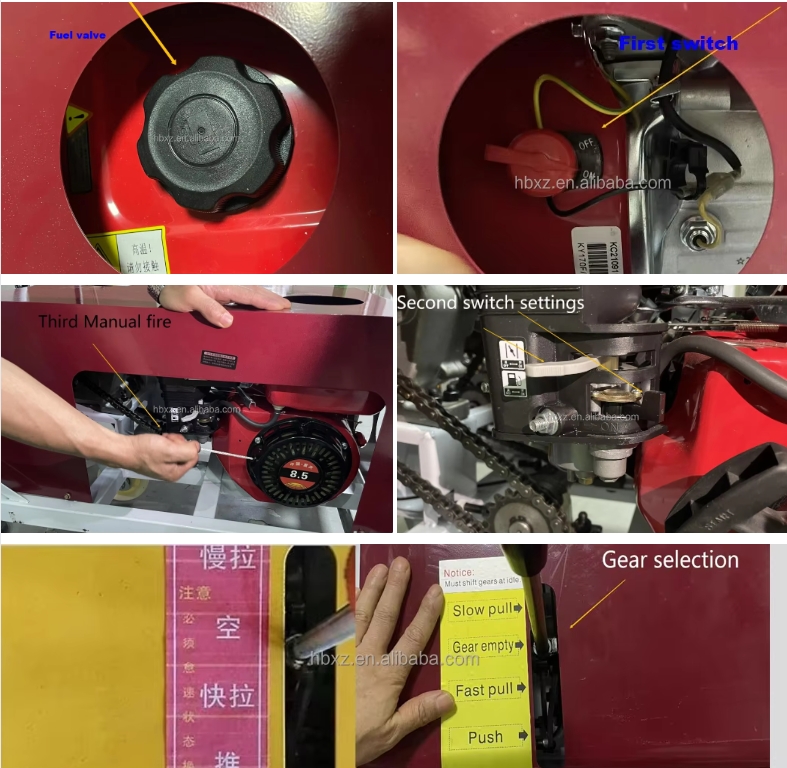

The machine is easy to operate, and the four operating stops are (push, pull, idle, and slow) to select the desired position.

Before changing gear, you must adjust the throttle to the idle state, and then control the accelerator on your hand when you hang
it. Turn off the flame switch after use.

pulling force,1500kgs
speed:1-30m/min
suitable cable diameter:0-200mm
size:950x550x400mm,it Can be placed in 660mm diameter wellbore
Net weight:135kg
Motor power:3kw
